CWT5011 GSM SMS Remote Monitoring System with 8DI, 8DO and 4AI
Support 3G/4G version (Skype: lisali1220 WhatsApp: 0086 13652426178)
CWT5011 can connect with any 4-20mA wind direction analogue sensors, once the sensor data is high or low, it will send sms to notice users.
CWT Brand GSM RTU List:
CWT5005 has 2 digital inputs and 2 digital outputs
CWT5010 has 4 digital inputs and 4 digital outputs
CWT5015 has 1 digital inputs and 2 relay outputs and 1 analogue input
CWT5011 has 8 digital inputs and 8 digital outputs and 4 analogue inputs
Feature
·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers(can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Temperature sensor (optional)
·Internal battery (optional)
·Easy used GUI configure software
·Adopted highly integrated industrial CPU
·Reliable performance with built-in double watchdog
·Low maintenance, 24×7 operation
8 digital inputs
NO or NC type can be preset
Configurable for alarm and recover sms
Configurable for alarm ensure time
Configurable for alarm delay time
Configurable for service number’s authority of receive inputs alarm
Remote query inputs status
8 relay drivable outputs
Multiple output type can be preset
Remote On/Off/Pulse outputs
Configurable for pulse time
Remote query outputs status
Outputs can be activated by alarm or call
Outputs can be activated on schedule
Specifications
| Parameter | |
| DC Power supply | 12-24V DC (Standard adapter: DC 12V/1.5A) |
| Power consumption | 12V input Max. 150mA/Average 50mA |
| Frequency range | Quad-frequency 900/1800/850/1900HMz |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Serial | RS232 |
| Temperature range | -30°C ~ +70 °C |
| Humidity range | Relative humidity 95% |
| Digital Input | 4 digital inputs(Dry contact) |
| output | 4 drivable relay outputs(open-collector outputs) |
| Output drive voltage | Equal to input DC voltage |
| Output drive power | Drive voltage ≤35V, drive current ≤500mA |
| Exterior dimension | 95×63×25mm |
| Weight | 256 g |

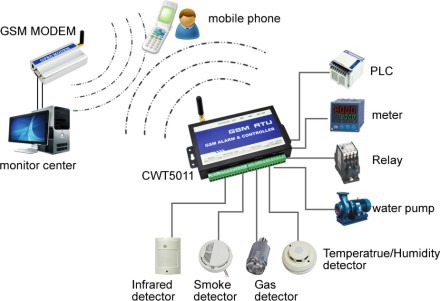

Application:
Feature
·Configurable for alarm and recover sms
·Automatically report the status of itself on schedule
·Support remote setting via sms commands
·Preset 10 phone numbers(can be distributed authority)
·Remote add/edit/delete phone group
·Automatically update internal clock via sms
·Time stamped in alarm or recover messages
·Support ring call when alarm
·Temperature sensor (optional)
·Internal battery (optional)
·Easy used GUI configure software
·Adopted highly integrated industrial CPU
·Reliable performance with built-in double watchdog
·Low maintenance, 24×7 operation
4 digital inputs
NO or NC type can be preset
Configurable for alarm and recover sms
Configurable for alarm ensure time
Configurable for alarm delay time
Configurable for service number’s authority of receive inputs alarm
Remote query inputs status
4 relay drivable outputs
Multiple output type can be preset
Remote On/Off/Pulse outputs
Configurable for pulse time
Remote query outputs status
Outputs can be activated by alarm or call
Outputs can be activated on schedule
Specifications
| Parameter | |
| DC Power supply | 12-24V DC (Standard adapter: DC 12V/1.5A) |
| Power consumption | 12V input Max. 150mA/Average 50mA |
| Frequency range | Quad-frequency 900/1800/850/1900HMz |
| SIM Card | Supporting 3V SIM Card |
| Antenna | 50 Ω SMA Antenna interface |
| Serial | RS232 |
| Temperature range | -30°C ~ +70 °C |
| Humidity range | Relative humidity 95% |
| Digital Input | 4 digital inputs(Dry contact) |
| output | 4 drivable relay outputs(open-collector outputs) |
| Output drive voltage | Equal to input DC voltage |
| Output drive power | Drive voltage ≤35V, drive current ≤500mA |
| Exterior dimension | 95×63×25mm |
| Weight | 256 g |
|
|
CWT5011 3G GSM remote monitoring system for wind direction Images
|
